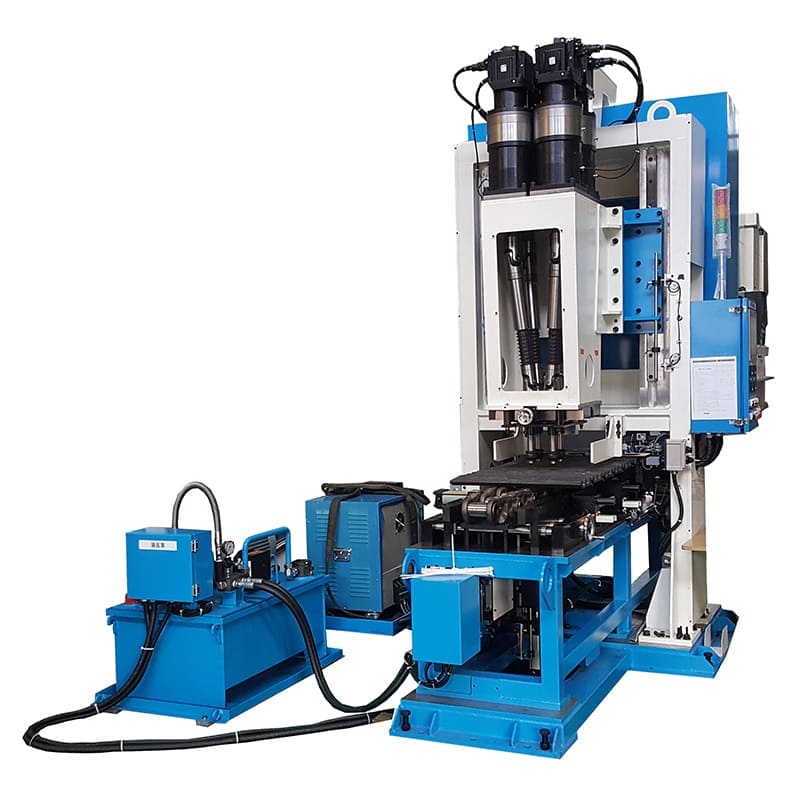

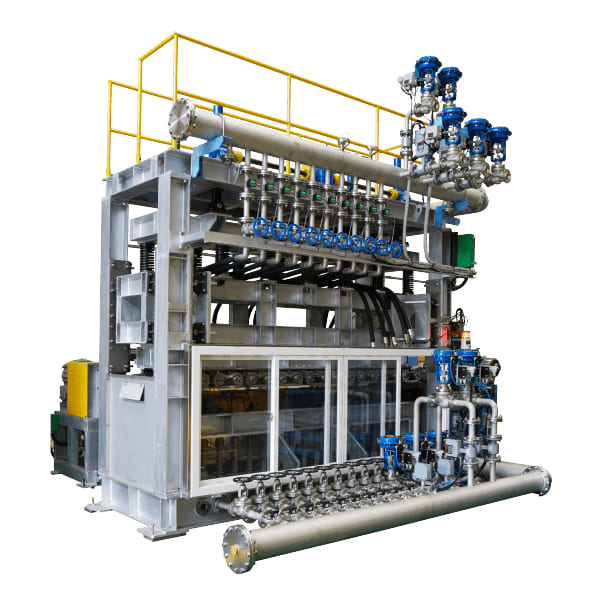

As a device that hardens heated SHOES (870 to 890℃), it is an automatically operated system
controlled with a constant force with a torque device to prevent bending.
Each model can control the sensors for water temperature and pressure and monitor the water
quantity with a precision electronic flow meter auto control system.
As a patented SHOE inlet device, the location of the BOLT HOLE and HOLE processing are implemented as an AUTO SYSTEM and work is possible regardless of the product bending.
More View
Auto control of the inlet device for each shoe type possible, and pass/fail judgement by
measuring bend and quantifying it in a graph
Patent applied as cutting-edge equipment capable of 0.02 mm precision and dramatically reduced
cycle time
-

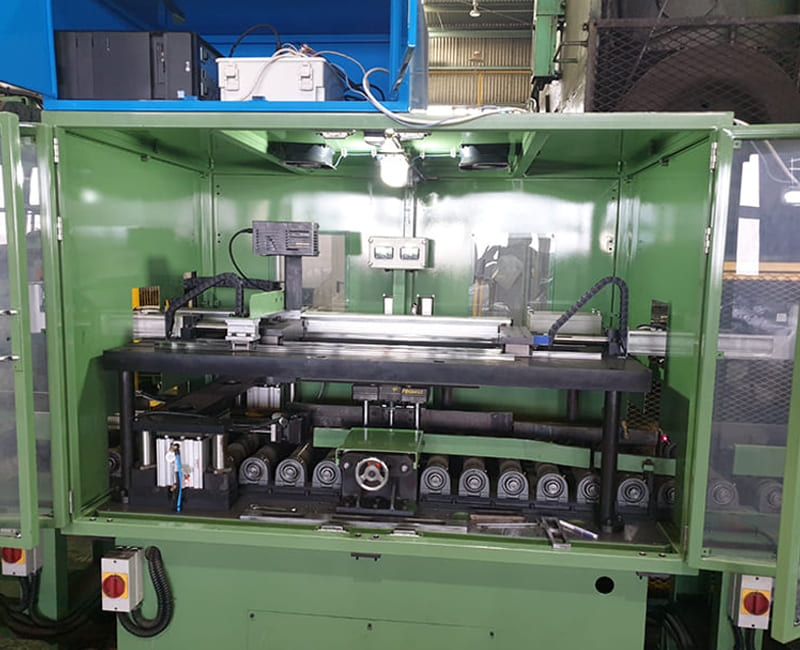

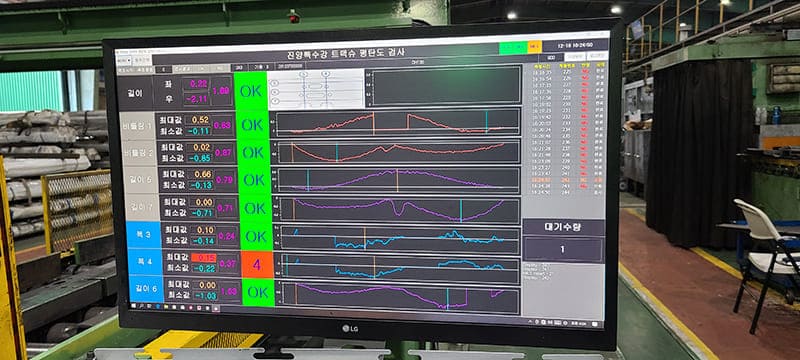

Flatness inspection MACHINE monitor system

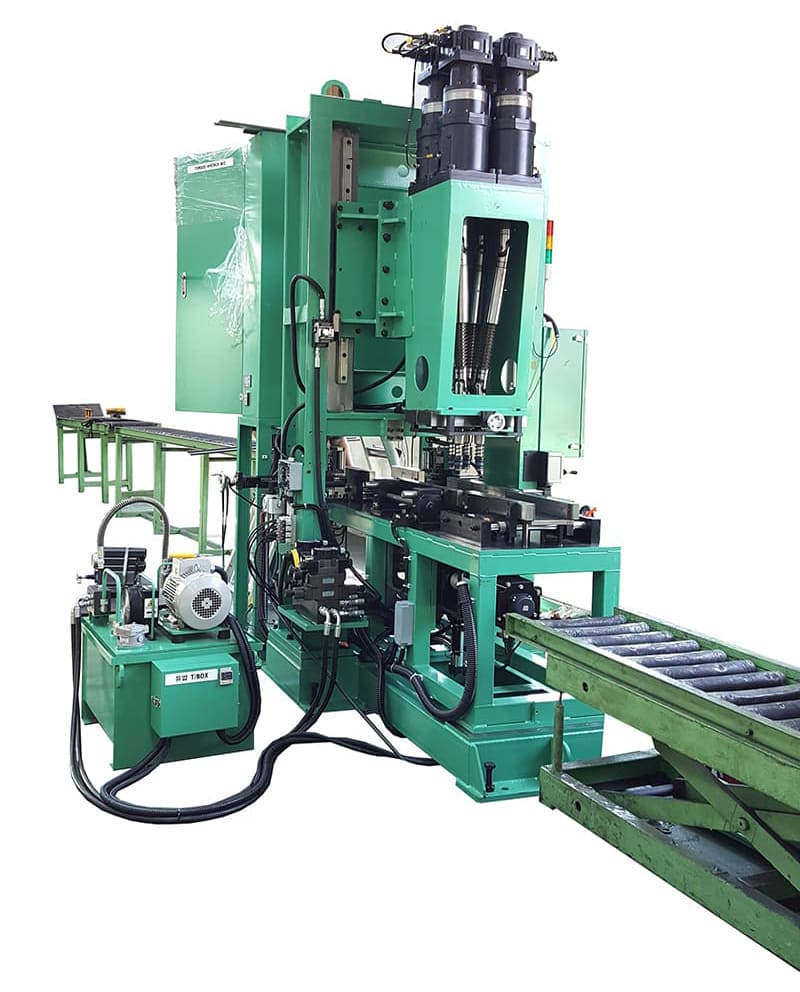

It is equipment that assembles tracks and links, and precision control is possible as a servo-motor type.
More View

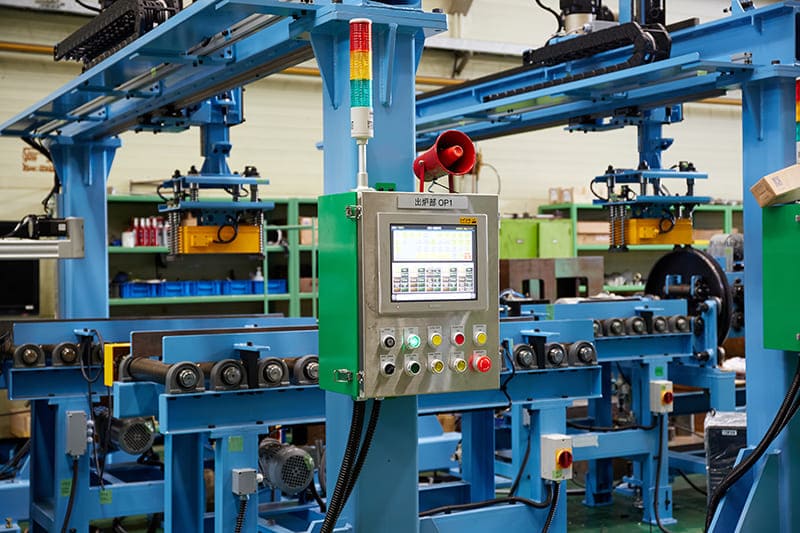

This equipment picks up TRACK SHOES that come down the conveyor belt with a magnet and moves it to the conveyor belt for the next process.
More View

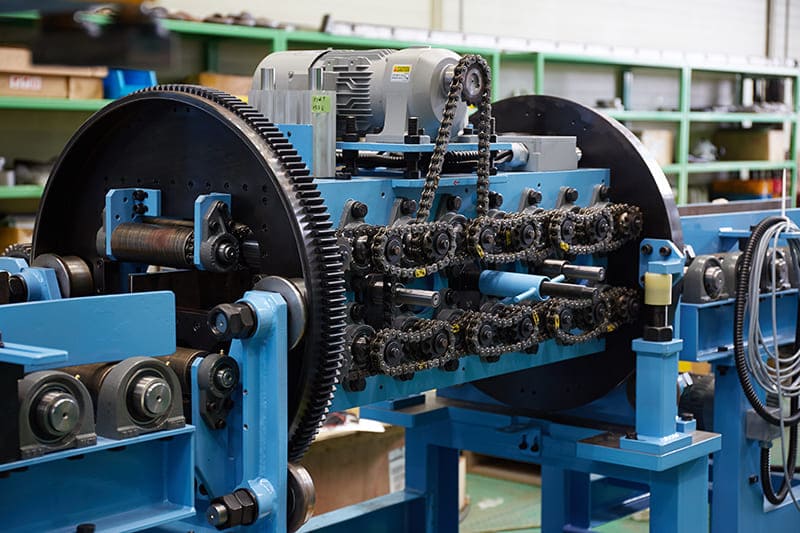

As equipment that flips TRACK SHOES 180 degrees, after the flip at this device, it sends the item to the next process.
More View
Interface with ERP system possible with a link assembler (indentation press, grease injector,
After link and pin push assembly and track shoe assembly, total binder packaging process design and manufacturing
More View

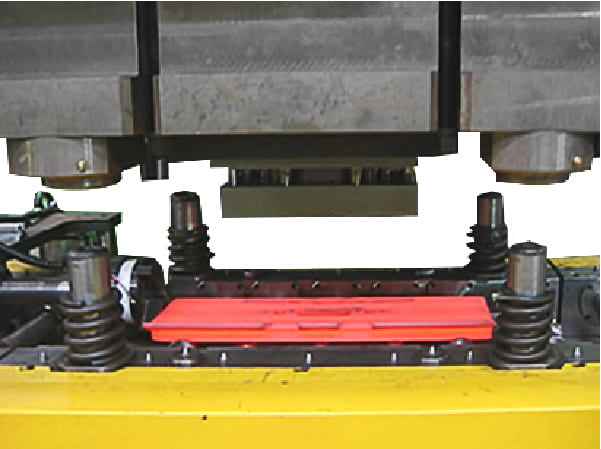

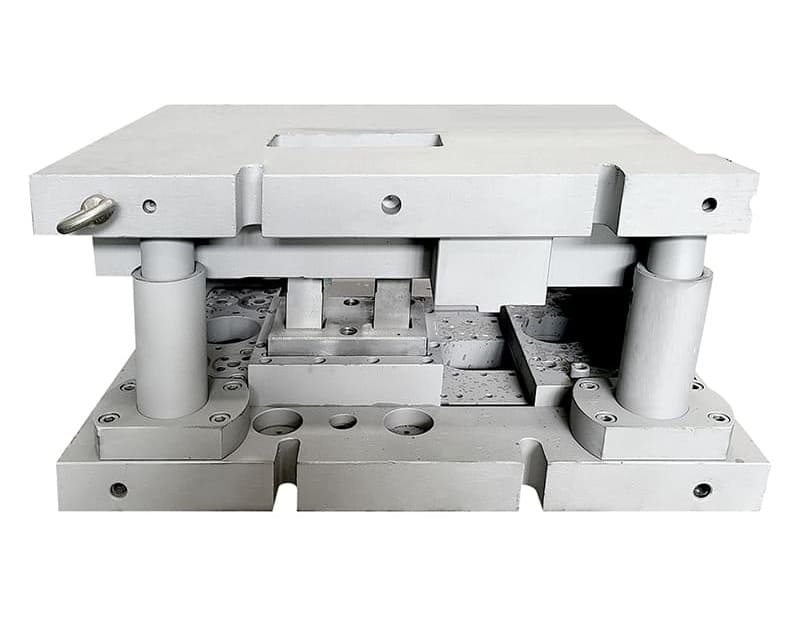

SHOE length cutting and notching possible at the same time
Tool cost reduction with mold part design standardization
-

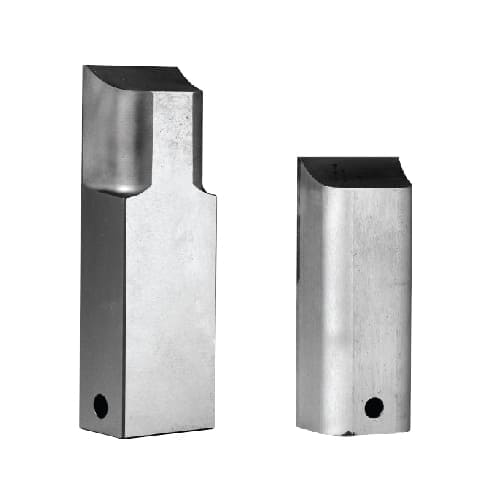

Side Pin
-

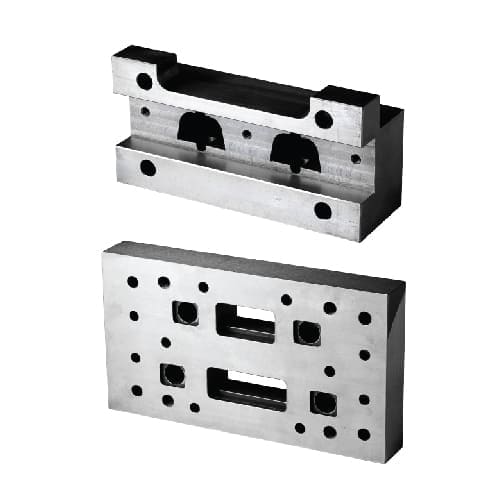

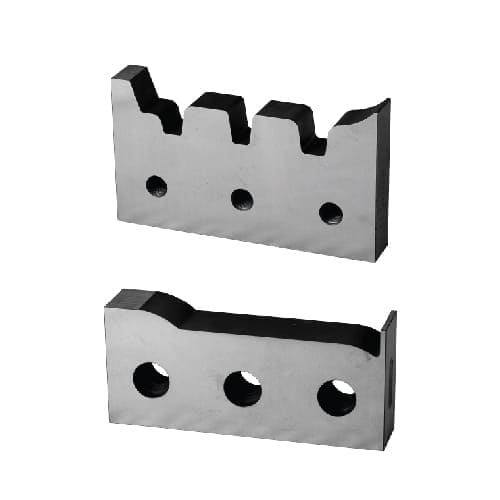

Side Pin Holder
-
Side Pin Holder
-

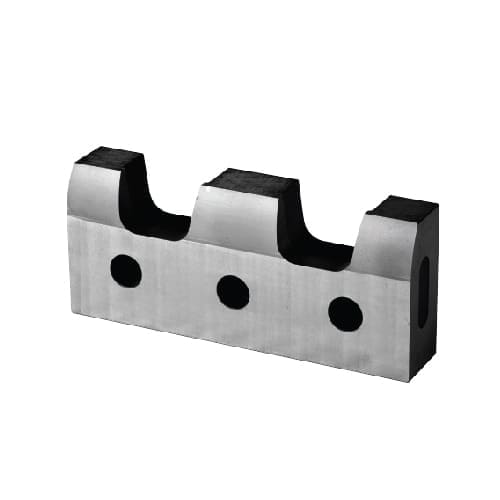

Dies
Currently sold in Korea and exported China, the mold assembly and parts quality is excellent and recognized worldwide. All molds are standardized, so new molds can be supplied in the shortest possible time.
More View-

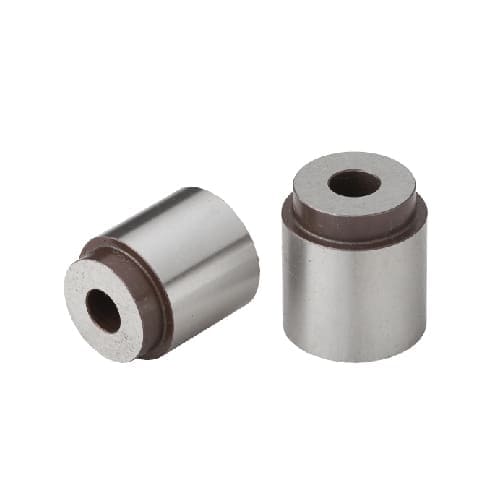

Bolt Hole
Punch Holder -

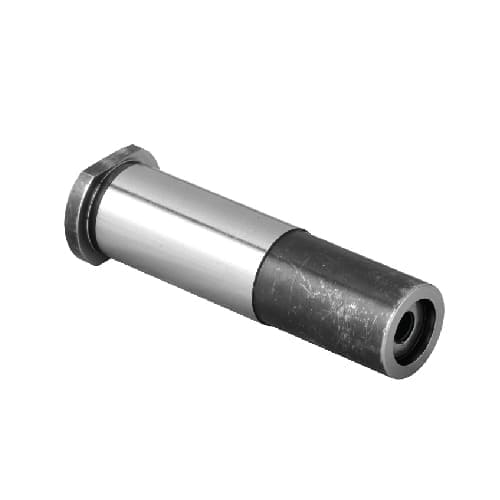

Bolt Hole
Punch Tip -

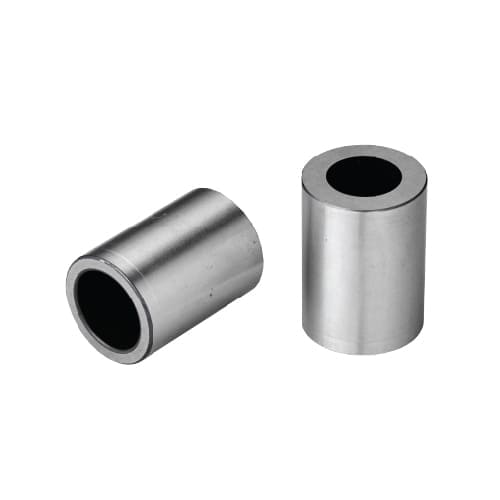

Bolt Hole
Punch Bush -

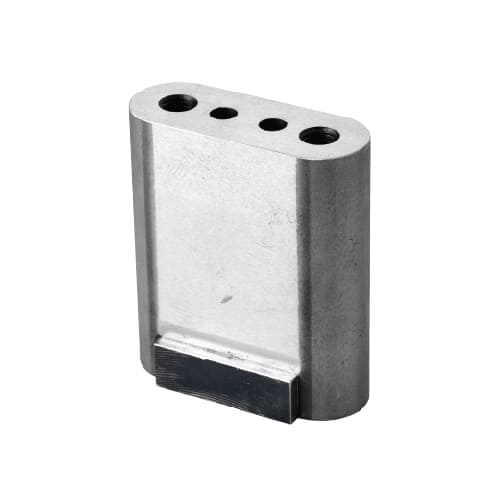

Long/Short Hole
Punch Holder -

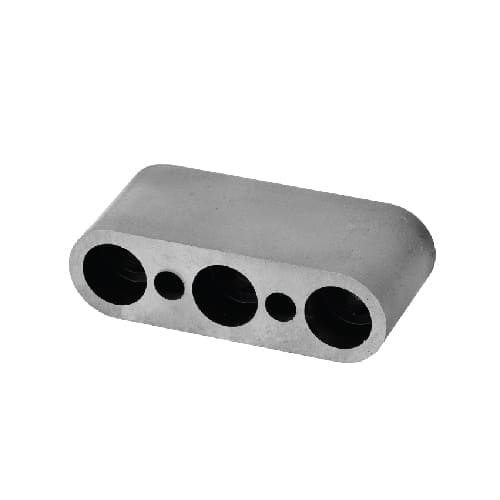

Long/Short Hole
Punch Tip -

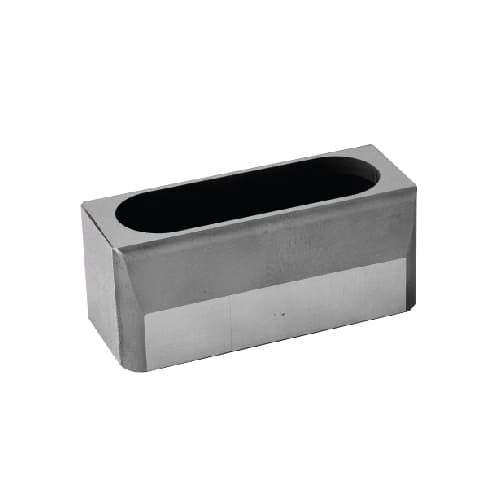

Long/Short Hole
Punch Bush
